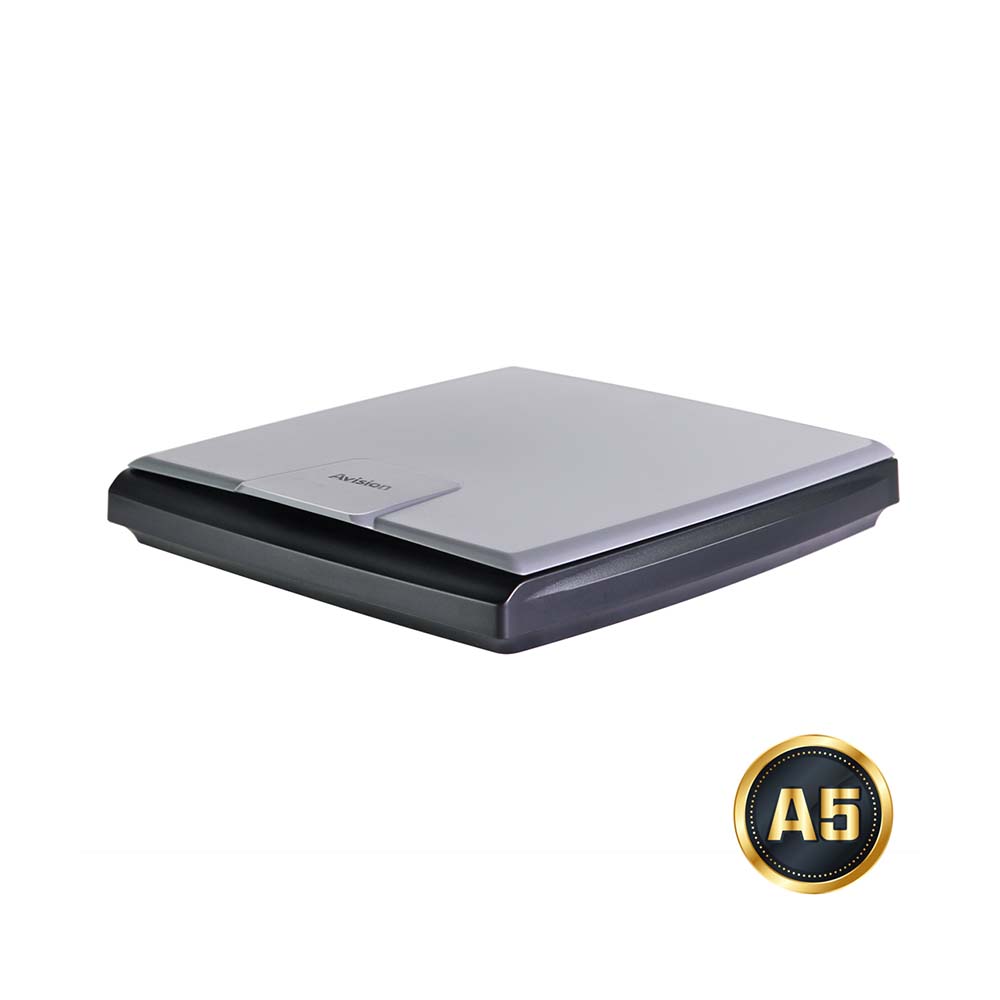

FB15
A Slim and Light Flatbed Scanner
Avision is proud to introduce its slim scanner series. With scan size up to A5, the Avision FB15 is your ideal scanner for scanning passports, driver license, bank check, ID cards, and photos. Based on the innovative CIS (Contact Image Sensor) technology, the FB15 is only 1.8” in height and weights a mere 1 kg.
Product Detail
Product Features
No Warm Up Needed and Fast Scan Speed High Optical Resolution
Despite its small footprint, the FB15 is big on resolution. With a true optical resolution of 1200 x 2400 dpi and color depth of 48-bits, the FB15 is able to reproduce image in fine detail and subtle shade.
Advanced settings via TWAIN driver Powerful Bundled Software Applications
The FB15 comes with a TWAIN driver and is bundled with a suite of powerful software applications that include Avision Button Manager, AVScan X, and Nuance PaperPort SE 14. With Button Manager, you can create searchable PDFs, scan and send images to e-mail, printer, or clouds servers such as Google DriveTM, Dropbox, or Evernote® with just a simple press of a button. The AVScan X and Nuance PaperPort are highly effective image processing and document management software that helps you streamline your task more efficiently.
Features
- Ultra slim – 1.8 inches in height and 4 lbs in weight
- The best tool to scan small-size document
- Scan size up to A5
- Optical resolution up to 1200 dpi
- Scans A5 size in B&W needs only 1.8 seconds
- High speed USB 2.0 port
- Includes a TWAIN scanner driver
Technical Specifications
| Technology | CMOS-CIS |
|---|---|
| Light Source | LED |
| Memory Size | 64MB SDRAM |
| Optical Resolution (dpi) | 1200 x 1200 dpi |
| Output Resolution (dpi) | 1200 x 1200 dpi |
| File Formats | BMP, PNG, GIF, JPEG, Single-Page PDF, Multi-Page PDF, Multi-TIFF, TIFF, RTF, TXT, OCR( for iScan only ), XPS, DOC, XLS, PPT, DOCX, XLSX, PPTX, HTML |
| Grayscale mode | 16-bit input 8-bit output |
| Color mode | 48-bit input 24-bit output |
| Dimensions (WxDxH) | 277 x 332 x 308 mm (10.91 x 13.07 x 12.13 in.) |
| weight | 1.1kg ( 2.4lbs ) |
| Interface | USB 2.0 |
| Power Consumption | Operation < 10W ；Ready < 4W ；Sleep < 2W；Off < 0.3W |
| Acoustical Noise | Operation < 50 dB；Ready < 45 dB |
| OS Support | Windows 7/8/10/11, Windows Server 2008R2/2012/2016/2019/2022/2025, Fedora, openSUSE, Debian, Ubuntu, macOS10.12~10.15, macOS11 Big Sur, macOS12 Monterey, macOS13 Ventura, macOS14 Sonoma |
| Bundled Software | TWAIN Driver, Button Manager, PaperPort |
| Flatbed Maximum | 219.5x 182 mm ( 8.6 x 7.2 in ) |
| B/W @ 300dpi, A4 | 1 sec. / 2.5 sec. ( Include Backhome ) |
| B/W @ 600dpi, A4 | 1 sec. / 2.5 sec. ( Include Backhome ) |
| Color @ 300dpi, A4 | 1 sec. / 2.5 sec. ( Include Backhome ) |
| Color @ 600dpi, A4 | 1 sec. / 2.5 sec. ( Include Backhome ) |
