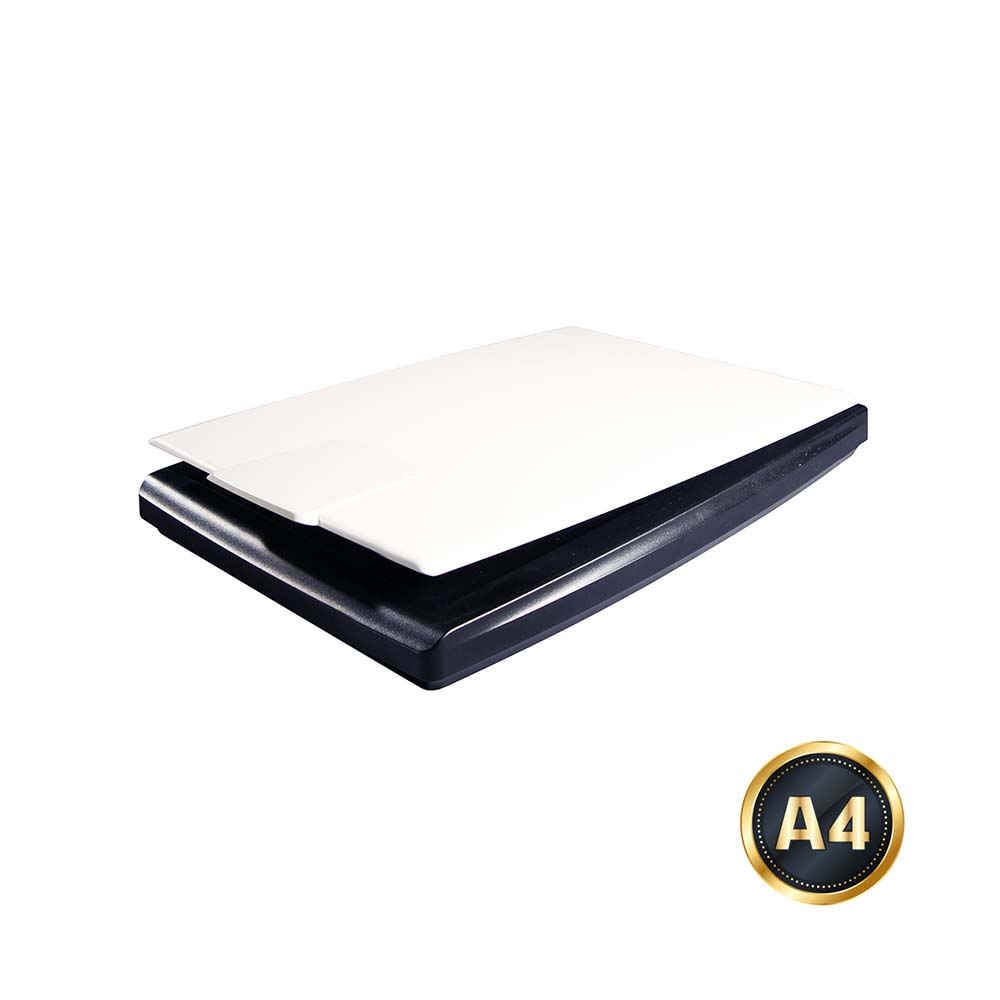

FB1000N
A Slim Flatbed A4 Scanner
Avision is proud to introduce its slim scanner series. With scan size up to A4, the Avision FB1000N is your ideal tool to digitize your business document. Based on the innovative CIS (Contact Image Sensor) technology, the FB1000N is only 1.7” in height and weights a mere 1.8 kg.
Product Detail
Product Features
No Power-Cord Required
The FB1000N is powered by the USB cable to the PC. No external power adapter and cords are needed!
High Optical Resolution of 1200 dpi
Despite its small footprint, the FB1000N is big on resolution. With a true optical resolution of 1200 dpi, the FB1000 is able to reproduce image in fine detail and subtle shade.
No Warm Up Needed and Fast Scan Speed
The LED illumination system not only saves power, it doesn’t require any warm up time. The FB1000N is ready to go as soon as you turn it on. It’s fast too! It only takes 7 seconds to scan an A4 size document.
Advanced settings via TWAIN driver
Avision’s TWAIN user interface provides various useful features to enhance your image quality including auto crop and deskew, auto color detection, color matching, despeckling, color dropout and so on. Documents are scanned and ready to be used!
Automatic Multiple Images Cropping
In addition, the scanner comes with the convenient feature of multiple images cropping. With this feature, various sizes of documents such as photos, ID Cards, or business cards can be placed on the flatbed and the scanner is able to crop and create multiple images according to the original sizes of the documents in one single scan.
Features
- Ultra slim – 1.7 inches in height and 1.8 kg (4 lbs) in weight
- Scan size up to A4 (8.5” x 11.7”)
- Optical resolution up to 1200 dpi
- Scans an A4-size page needs only 7 seconds (color, 300 dpi)
- Easy-to-use TWAIN user interface provides various useful features such as auto color detection,color matching, and despeckling to enhance the image quality
- Automatic multiple image cropping creates multiple images in one scan to save your time
- High speed USB 2.0 port
Technical Specifications
| Technology | CMOS CIS |
|---|---|
| Light Source | LED |
| Memory Size | 16 MB SDRAM |
| Document feeding mode | Flatbed |
| Optical Resolution (dpi) | 1200 x 1200 dpi |
| Output Resolution (dpi) | 1200 x 1200 dpi |
| File Formats | BMP, PNG, GIF, JPEG, Single-Page PDF, Multi-Page PDF, Multi-TIFF, TIFF, RTF, TXT, OCR( for iScan only ), XPS, DOC, XLS, PPT, DOCX, XLSX, PPTX, HTML |
| Grayscale mode | 16-bit input 8-bit output |
| Color mode | 48-bit input 24-bit output |
| Dimensions (WxDxH) | 284 x 401 x 45 mm (11.18 x 15.79 x 1.77 in.) |
| weight | 1.8 Kg ( 4 lb) |
| Interface | USB 2.0 |
| Power Consumption | Standby <1.5W |
| OS Support | Windows 7/8/10/11, Windows Server 2008R2/2012/2016/2019/2022/2025 |
| Flatbed Maximum | 216 x 297 mm ( 8.5 x 11.7 in ) |
| B/W @ 300dpi, A4 | 7 sec ( Include Backhome 13 sec ) |
| B/W @ 600dpi, A4 | 7 sec ( Include Backhome 13 sec ) |
| Color @ 300dpi, A4 | 7 sec ( Include Backhome 13 sec ) |
| Color @ 600dpi, A4 | 7 sec ( Include Backhome 13 sec ) |
Download
| Name | Version | Size | File |
|---|---|---|---|
| FB1000N | English | 392.80 KB | Download |
