AV332F
A New Generation of Document Scanner

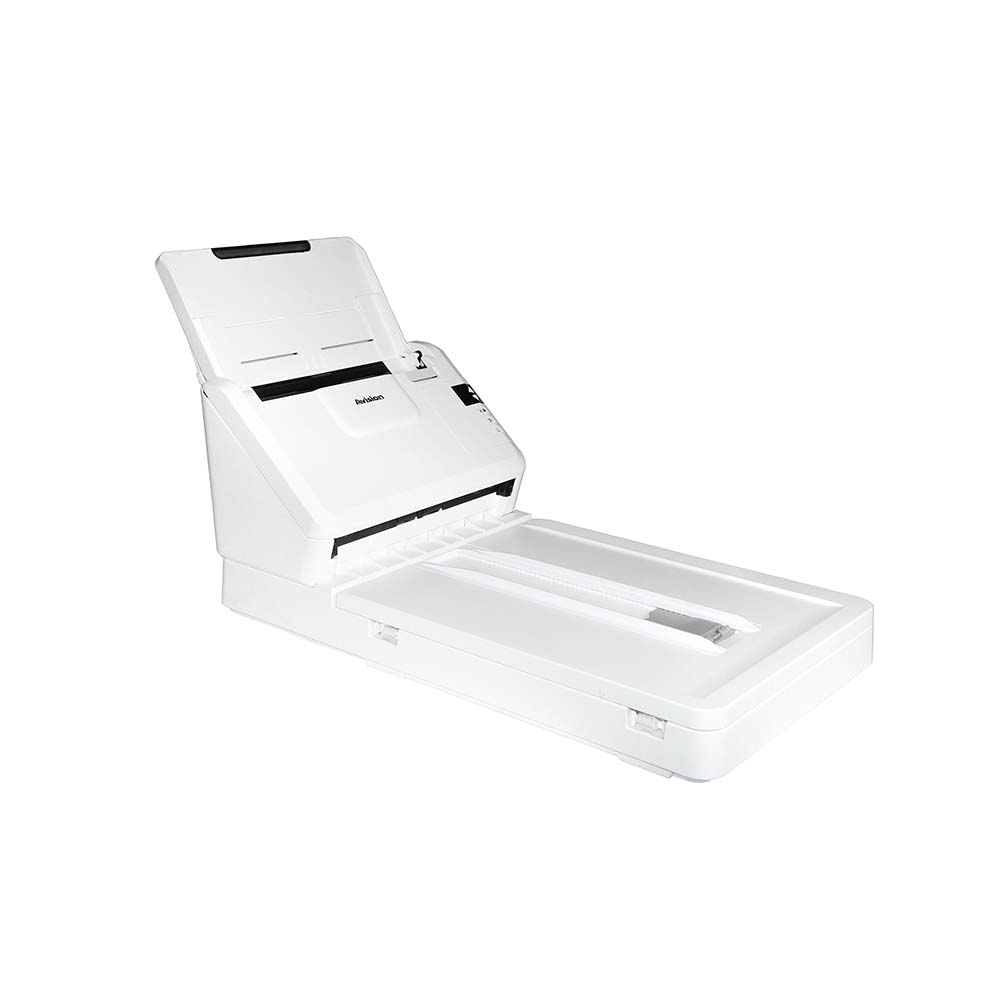

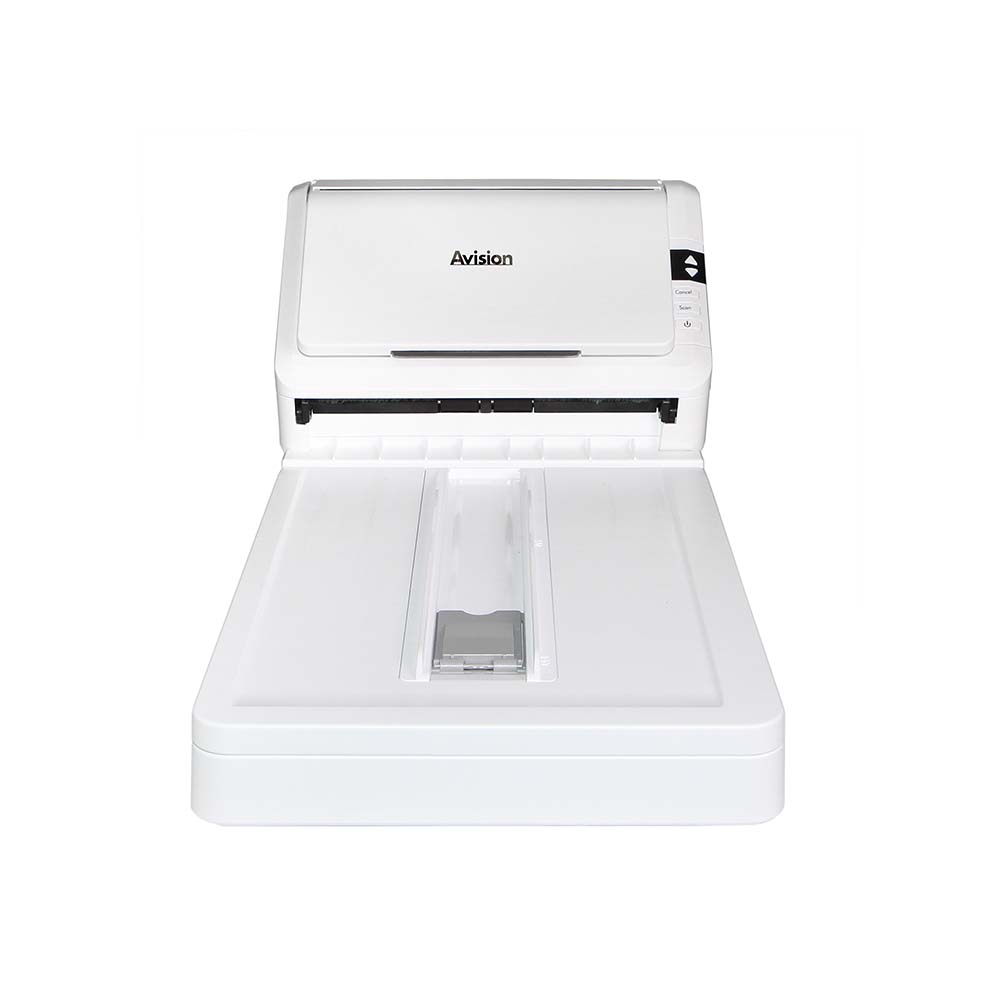

Enhanced with innovative features, the Avision AD332F offers high throughput of 32 ppm and 64 ipm in a compact footprint conserving both space and budget. Unlike common sheet-fed scanners which provide only the auto document feeder and can not accommodate irregular sizes and weights of paper, the AD332F harmoniously combines the benefits of the fast scan rate of the ADF and the convenience of the flatbed unit to meet customer’s diverse requirements.
Product Detail
Product Features
Advanced Friction Roller Enhances Paper Separation and Feeding Reliability
Designed with the innovative reverse roller for advanced paper separation, the AV188 delivers outstanding feeding reliability by effectively reducing the risk of a multi-feed or paper jam for a wider variety of scanning situations.
A Duplex Scanner Suited for Document and Cards
Thanks to the advanced straight paper path and image processing technology, mixed batches of documents with varies sizes and weights can be scanned, appropriately cropped, deskewed, and ready to use. Scan size accepts paper from receipts (2” x 2.5”) to business document (8.5” x 14”). The auto document feeder is also robust enough to feed paper up to 200 g/m2 and embossed hard cards such as ID cards, credit cards, driver’s license, and health insurance card up to 1.25mm in thickness. What is best, up to 3 plastic ID cards in 0.8mm (thickness) and 20 pages of document in 20 lbs can be loaded together and scanned continuously without operator adjustments.
Earth-Friendly LED Technology
The AD332F delivers high throughput and outstanding performance. However, it is earth-friendly at the same time. The LED technology requires no warm up time and is lower power consumption without generating mercury vapor as other traditional scanners using the CCFL (cold cathode fluorescent lamp) technology.
High-Volume Daily Duty Cycle
The scanner can be used to scan up to 5,000 pages per day through the 50-page automatic document feeder. The data indicates that this scanner is designed to scan document in any application requiring frequent document and hard card scanning.
Powerful bundled software applications
The AD332F come with TWAIN and ISIS drivers, and are bundled with a suite of powerful software applications that include Avision Button Manager V2, AvScan 5.0, and Nuance PaperPort SE 14. With Button Manager V2, you can scan to searchable PDF, JPEG, BMP, or GIF file format, save to folder on your computer, and scan to e-mail, image editing application, or even a cloud application such as Google Docs or Microsoft SharePoint with a press of a button. The AVScan V5 and Nuance PaperPort SE 14 are highly effective image processing and document management software that helps you streamline your task more efficiently.
Features
- Scans double-sided color documents up to legal size
- Fast scan rate up to 32 pages per minute and 64 images per minute at 300 dpi in color, gray, or B&W mode
- Friction roller technology delivers outstanding feeding reliability
- Ultrasonic multi-feed detection
- Earth-friendly LED technology
- Compact auto document feeder holds documents up to 50 pages
- Easy-to-use button scanning
- Supports 236” (600cm) long page scanning
- Auto power off setting
Technical Specifications
| Technology | CMOS-CIS |
|---|---|
| Light Source | LED |
| Memory Size | 128 MB |
| Document feeding mode | Flatbed and ADF |
| Optical Resolution (dpi) | Flatbed:1200 x 1200 dpi, ADF:600 x 600 dpi |
| Output Resolution (dpi) | 1200 x 1200 dpi |
| File Formats | BMP, PNG, GIF, JPEG, Single-Page PDF, Multi-Page PDF, Multi-TIFF, TIFF, RTF, TXT, OCR( for iScan only ), XPS, DOC, XLS, PPT, DOCX, XLSX, PPTX, HTML |
| Halftone Patterns | Dither and Error Diffusion |
| Grayscale mode | 16-bit input, 8-bit output |
| Color mode | 48-bit input, 24-bit output |
| Dimensions (WxDxH) | Maximum：632 x 285 x 379 mm ( 24.9 x 11.2 x 14.9 in ), Minimum：519 x 285 x 216 mm ( 20.4 x 11.2 x 8.5 in) |
| weight | 5 Kg |
| Interface | USB 2.0 |
| Power Consumption | Operation < 16 W；Ready < 7 W；Sleep < 1.6 W；Off < 0.27W |
| Acoustical Noise | Operation < 52 dB；Ready < 25 dB |
| Recommended Daily Volume | Up to 5,000 pages |
| OS Support | Windows 7/8/10/11, Windows Server 2008R2/2012/2016/2019/2022/2025, Fedora, openSUSE, Debian, Ubuntu, macOS10.12~10.15, macOS11 Big Sur, macOS12 Monterey, macOS13 Ventura, macOS14 Sonoma |
| Bundled Software | TWAIN Driver, ISIS Driver, Button Manager, PaperPort, AVScan, WIA Driver |
| Ultrasonic paper jam detection | Yes |
| Long Paper Mode | Up to 200 dpi Color Duplex 236 in. ( 6000 mm )；Up to 300 dpi Color Duplex 218 in. ( 5540 mm )；Up to 600 dpi Color Duplex 59 in. ( 1500 mm ) |
| Card Scan | Embossed card ( Thickness 1.25 mm ) |
| ADF Minimum | 74 x52mm(A8) (2.9 x 2.0 in) |
| ADF Maximum | 216 x 356 mm ( Legal )( 8.5 x 14 in. ) |
| Flatbed Maximum | 216 x 297 mm ( 8.5 x 11.7 in ) |
| ADF Capacity | 50 sheets (80 g/m+² or 20 lb. Paper) |
| Paper Weight (Thickness) | 50g ~ 413 g/m² ( 13 to 110 lb ) |
| B/W @ 200dpi, A4 | Simplex : 40 ppm；Duplex : 80 ipm |
| B/W @ 300dpi, A4 | Simplex : 40 ppm；Duplex : 80 ipm |
| Color @ 200dpi, A4 | Simplex : 40 ppm；Duplex : 80 ipm |
| Color @ 300dpi, A4 | Simplex : 32 ppm；Duplex : 64 ipm |
