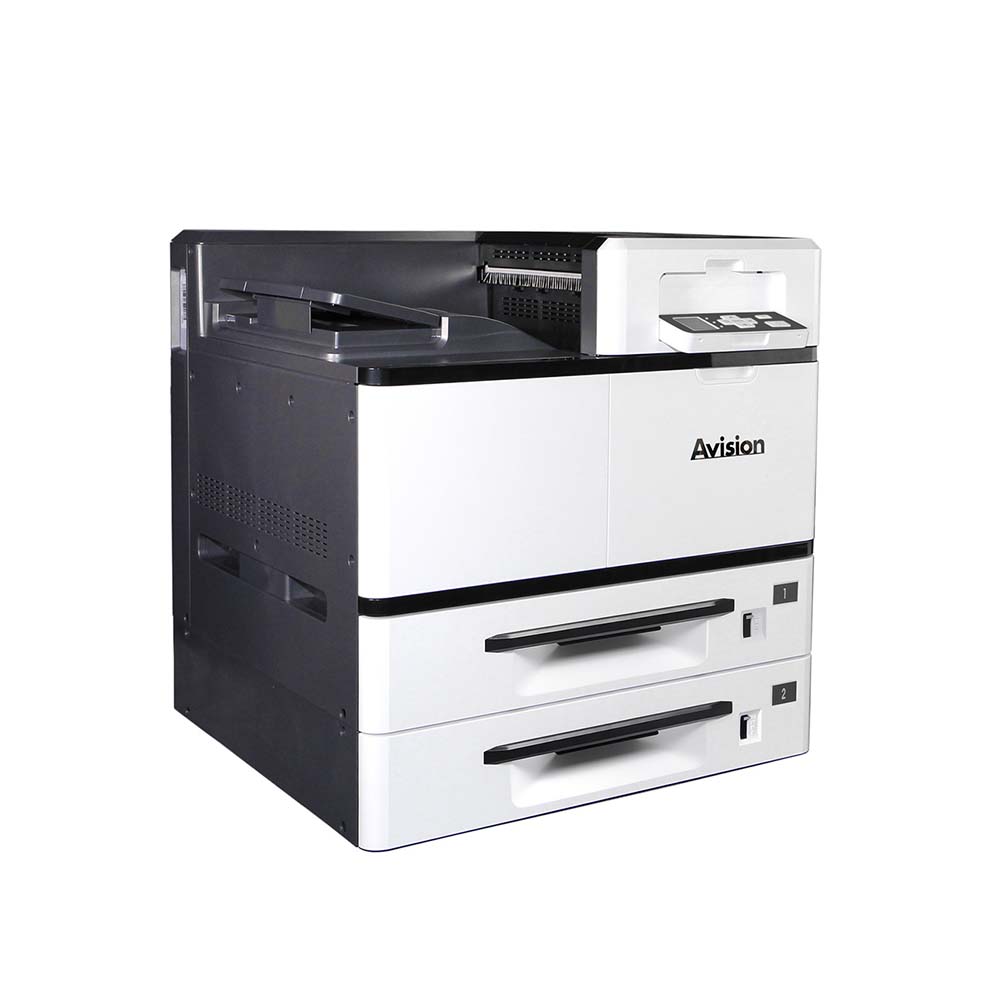

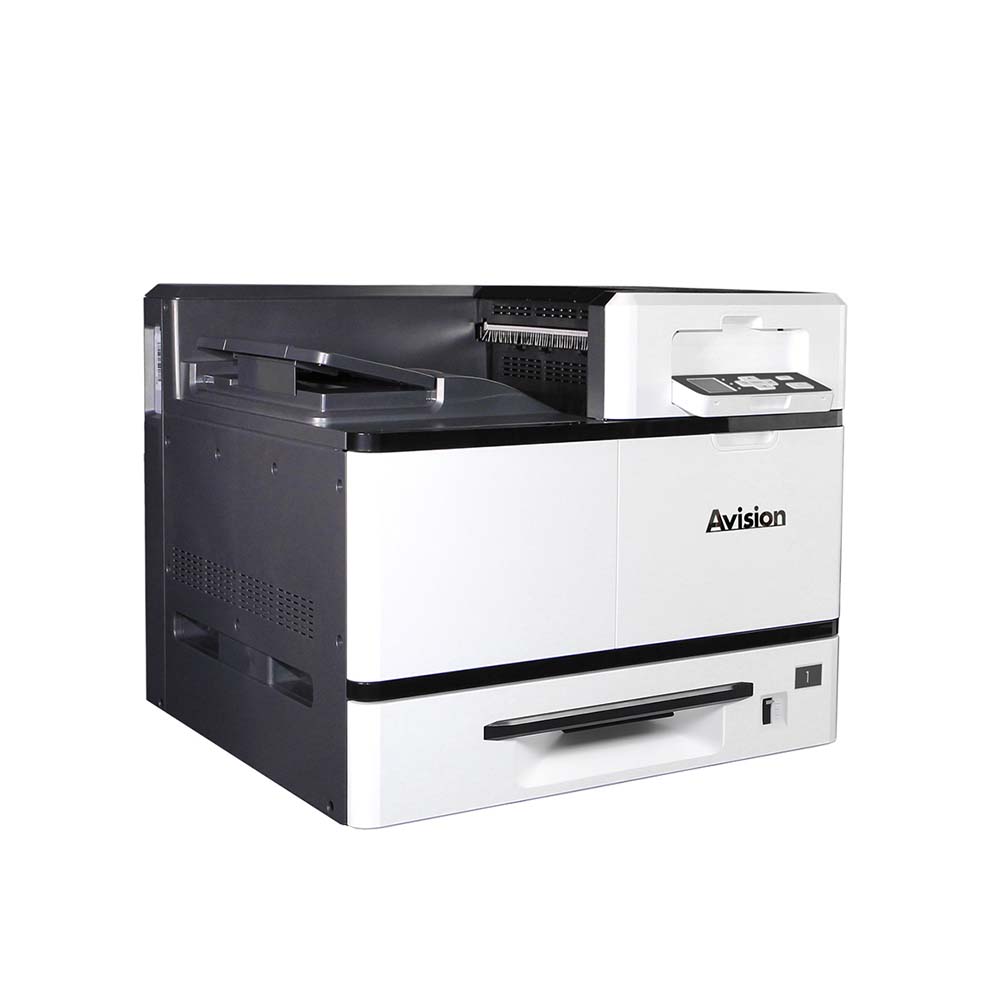

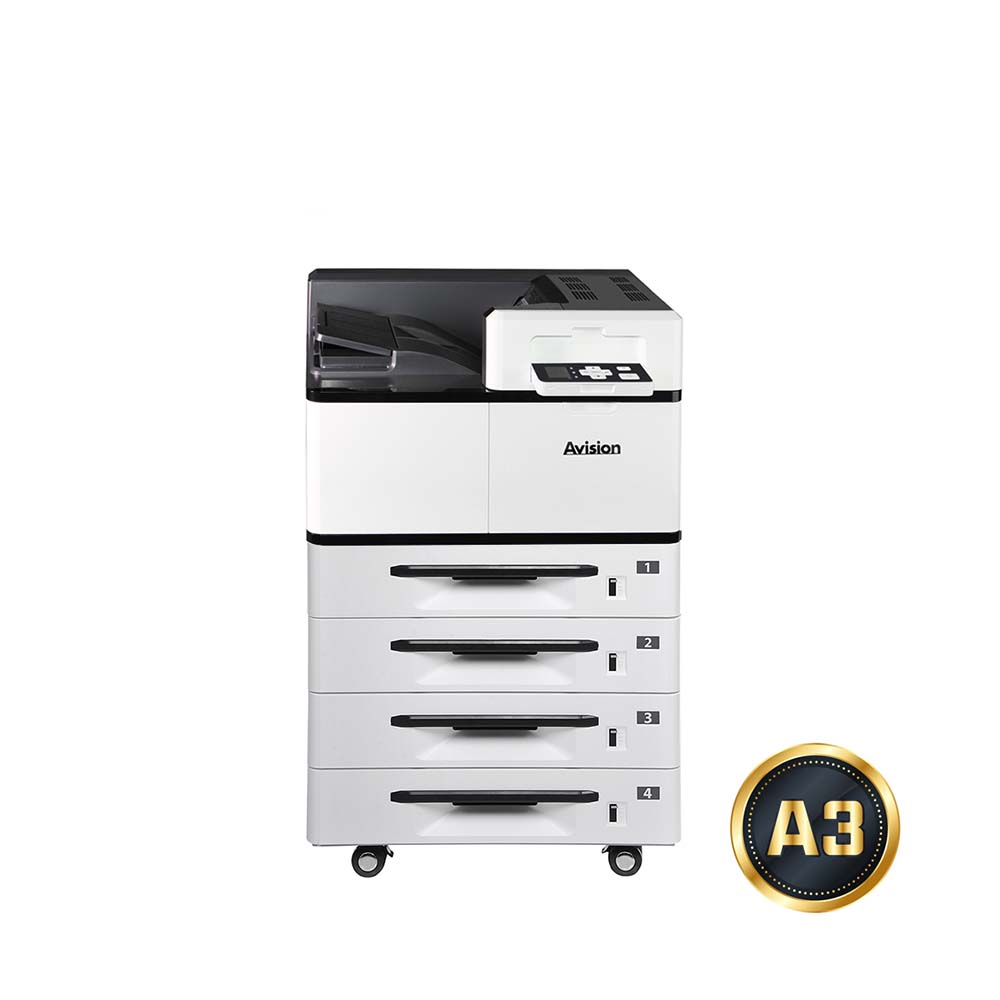

APix series
High performance printing
Avision APix series is the state-of-the-art printer which is affordable and can be used for local printing and network printing up to A3 size. The printer provides various features to ensure efficient and effective printout including network printing, printing on both sides, collating (sorting the printed pages), printing multiple pages on a single sheet , adding watermark in the background and so on. With a clear and LCD display and easy-to-use control panel, the APix series makes your operation fast and easy.
Product Detail
Product Features
Convenient mobile printing
Wirelessly print from your mobile devices through Avision’s app for the MFPs.
Automatic two-sided printing
Allows you to print on both sides of the page, cutting your paper use by up to 50%.
High-yield toner cartridge
The APix series is shipped with easy-to-install, high-yield 35,000-page toner cartridges that deliver a low cost per page.
High-capacity paper tray
With a main capacity of 530 sheets and expandable to 2,220 sheets, Say goodbye to frequent paper refills, ensuring seamless workflow and increased efficiency.
Technical Specifications
| printer-Functions | Printer |
|---|---|
| printer-CPU | 1.2GHz |
| printer-RAM | 512 MB |
| printer-Display | 1.7 in. TFT LCD |
| printer-Duplex printing unit | Automatic |
| printer-Duplex print | Paper size：A3, A4, B4(JIS), A5, B5(JIS), A6, B6(JIS), Letter, Legal, Ledger；Paper weight：60 to 105 g/m² |
| printer-Connectivity | USB 2.0, Wi-Fi(optional), 10/100/1000 Base-T Ethernet |
| printer-Dimensions (WxDxH) | AP300ix：575x563x485 mm ( 22.6×22.2×19.1 in )；AP400ix-AP500ix：575x563x595 mm ( 22.6×22.2×23.4 in. ) |
| printer-Weight | AP300ix：27Kg ( 60lb. )；AP400ix-AP500ix：35Kg ( 77lb. ) |
| printer-Power Supply | 100-120 VAC, 60 Hz or 220-240 VAC, 50/60 Hz |
| printer-Paper output capacity | 500 sheets |
| printer-Standard support Paper Capacity | 630 sheets ( AP300ix )；1,160 sheets ( AP400ix-AP500ix ) |
| printer-Maximum support Paper Capacity | 2,220 sheets |
| printer-Paper capacity(Manual tray) | 100 sheets ( 70 g/m2 plain paper ) |
| printer-Paper size(Manual tray) | A4, B5(JIS), A5, A6, letter, Legal, B4(JIS), A3, Ledger, B6(JIS) |
| printer-Paper weight(Manual tray) | 60 to 163 g/m² |
| printer-Paper capacity(Tray 1 and tray 2) | 530 sheets（70 g/m² plain paper） |
| printer-Paper size(Tray 1 and tray 2) | A4, A5, A6, B5(JIS), Letter, Legal, A3, B4(JIS), B6(JIS), Ledger |
| printer-Paper weight(Tray 1 and tray 2) | 60 to 105 g/m² |
| printer-Paper capacity(Tray 3 and tray 4 (option)) | 530 sheets（70 g/m2, plain paper） |
| printer-Paper size(Tray 3 and tray 4 (option)) | A3, A4, B4(JIS), A5, B5(JIS), A6, B6(JIS), Letter, Legal, Ledger |
| printer-Paper weight(Tray 3 and tray 4 (option)) | 60 to 105 g/m² |
| printer-Printing Method | LSU |
| printer-Printing Speed | AP300ix：30 ppm (A4 LEF)；AP400ix：40 ppm (A4 LEF)；AP500ix：50 ppm (A4 LEF) |
| printer-Resolution | 1200 x 1200 dpi |
| printer-PDLs/Emulations | PCL / PS / GDI |
| printer-Supported operation system | Linux, Win 11 , Win 10 , Win 8 , Win 7, Mac |
| printer-First print output time | <11s |
| printer-Auto Paper Tray Select | Yes |
| printer-Zoom | 25 % ~ 400 % |
| printer-Density | Level 1-7 |
| printer-Toner Cartridge | 35,000 sheets(A4, 5% cover rate) |
| printer-Drum Unit | 300,000 sheets |
| printer-Development Unit | 300,000 sheets |
| printer-Fusing Unit | 300,000 sheets |
Download
| Name | Version | Size | File |
|---|---|---|---|
| APix series | English | 862.03 KB | Download |
